| Blue Ocean® Screens are manufactured by a new method, which combines proprietary acrylic sheet techniques by Nitto Jushi Kogyon Co., Ltd., and light distribution control techniques developed specifically for the manufacture of projection screens. | ||||||||
|
■
Color Balance |
 |
|||||||
|
BOS-C is a single, thin, cell cast acrylic sheet with Blue Ocean® diffusion particles throughout the entire screen structure. The screen is cast with physical anti-reflective surface that completely eliminates all specular reflections (mirror reflections) on either side of the screen. BOS-C is excellent for all rear projection applications (home theater, exhibitions, public advertising, retail store displays, etc.) especially those where minimum weight and bending flexibility is crucial. Additionally, the benefit of low retardation makes this range of screens well suited for polarization type 3D screens. Also, our new, thin shape, super high definition BOS-C can reproduce super fine pixel images. |
.png) |
|||||||
|
Screen Material |
Specifications |
|||||||
|
PMMA |
16:9 Aspect Ratio |
|||||||
|
Finishes |
Screen Size | Screen Thickness | Screen Dimensions | Image Area | Screen Weight (lbs) | |||
|
Matte finish on surface |
||||||||
|
|
70" | 2mm (0.8") | 63" x 36" | 61" x 34" | 4 | |||
|
Form of Screen |
80" | 2mm (0.8") | 72" x 41" | 70" x 39" | 5 | |||
|
BOS- has one center-hall at top of the screen and four loose-hole lined up near to the center-hall. Hole diameter and the distance between each hole vary with the screen size. |
100" | 2mm (0.8") | 89" x 51" | 87" x 49" | 7 | |||
  |
4:3 Aspect Ratio |
|||||||
| Screen Size | Screen Thickness | Screen Dimensions | Image Area | Screen Weight (lbs) | ||||
| 70" | 2mm (0.8") | 52" x 44" | 56" x 42" | 4 | ||||
| 80" | 2mm (0.8") | 66" x 50" | 64" x 48" | 5 | ||||
| 100" | 2mm (0.8") | 82" x 62" | 80" x 60" | 12 | ||||
|
|
120" | 2mm (0.8") | 98" x 74" | 96" x 72" | 17 | |||
|
|
||||||||
|
Packaging Dimensions and Weight of Packing |
||||||||
|
|
■All screens are packed and shipped individually in reinforced cardboard packaging, suitable for international shipment. | |||||||
|

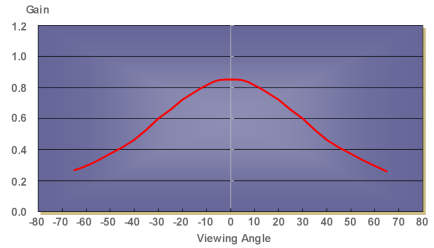

Viewing Angle |
■Cardboard packaging dimension and weight
*Total Package Weight
includes screen weight.
|
|||||||
.png) |
||||||||
|
16:9 Aspect Ratio |
||||||||
| Screen Size | Package Thickness | Package Dimensions | Total Package Weight | |||||
| A/W | V/W | |||||||
| 70" | 1.75" | 67" x 41" | 12 lbs. | 13 lbs. | ||||
| 80" | 1.75" | 76" x 46" | 16 lbs. | 17 lbs. | ||||
| 100" | 1.75" | 94 x 56" | 33 lbs. | 25 lbs. | ||||
|
4:3 Aspect Ratio |
||||||||
| Screen Size | Package Thickness | Package Dimensions | Total Package Weight | |||||
| A/W | V/W | |||||||
| 70" | 1.75" | 63" x 48" | 13 lbs. | 15 lbs. | ||||
| 80" | 1.75" | 70" x 54" | 24 lbs. | 19 lbs. | ||||
| 100" | 1.75" | 87" x 67" | 37 lbs. | 28 lbs. | ||||
| 120" | 1.75" | 102" x 78" | 41 lbs. | 39 lbs. | ||||
| Transmittance (%) 45.0 | ||||||||
| Peak Gain (5°) 0.85 | *A/W =Actual Weight | |||||||
| 1/2 Gain Angle 43° | V/W = Volume Weight | |||||||
| 1/3 Gain Angle 62° | ||||||||
|
*Specifications are subject to change at any time |
||||||||
|
|
||||||||
Specifications |
||||||||
Specifications |
||||||||
 |
||||||||
